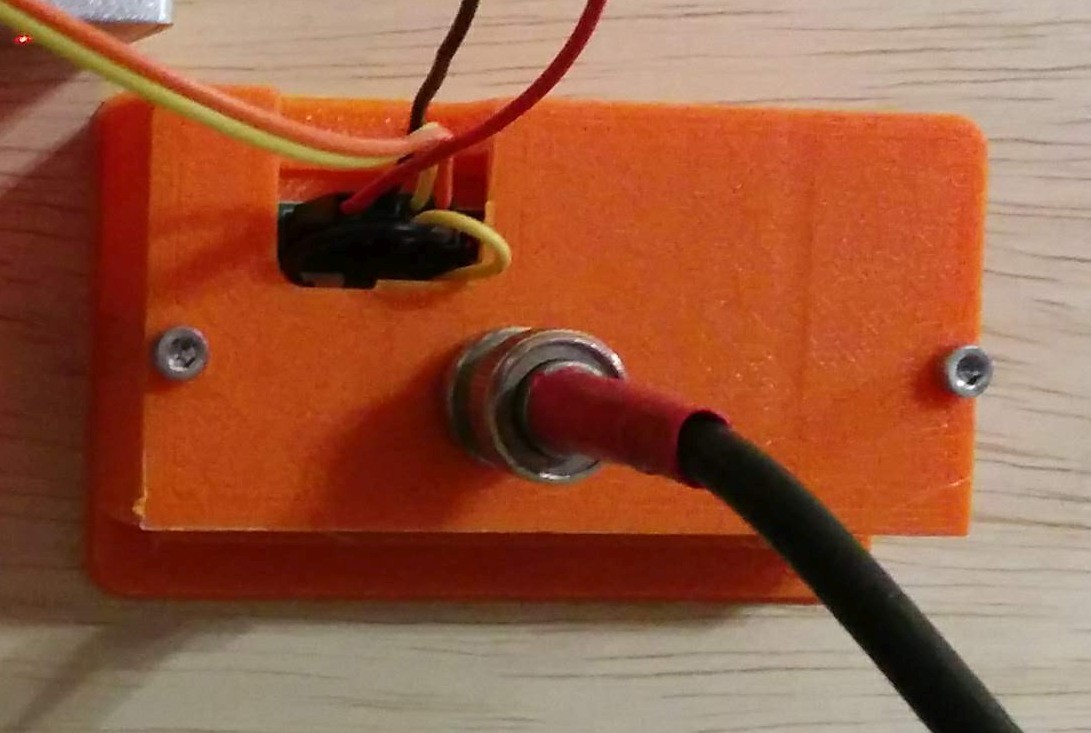

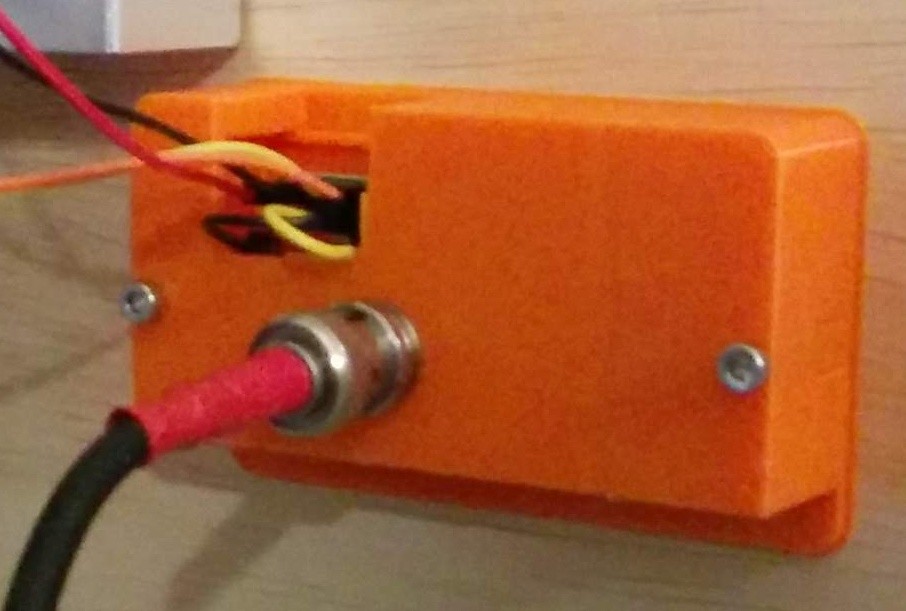

This case mounts a Raspberry Pi Zero along with a BNC connector.

Notes

1. There is a cutout for connecting wires to the pins for the power pins on the header.

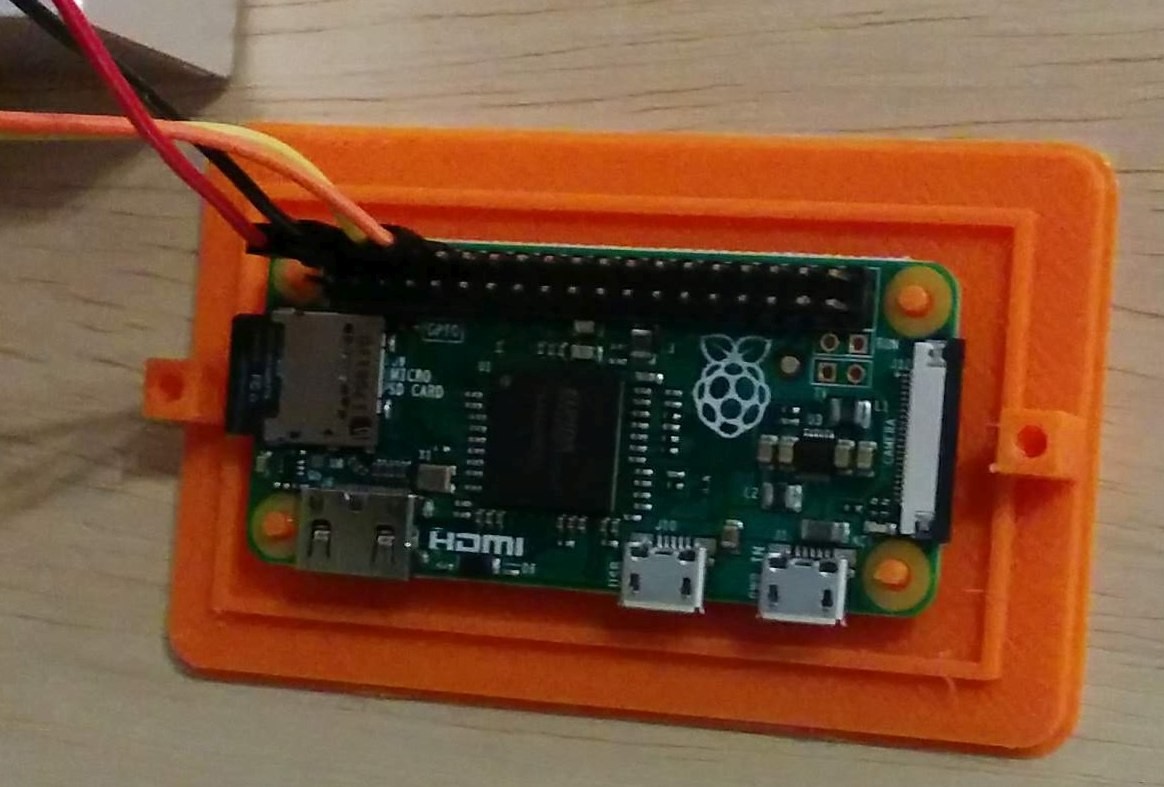

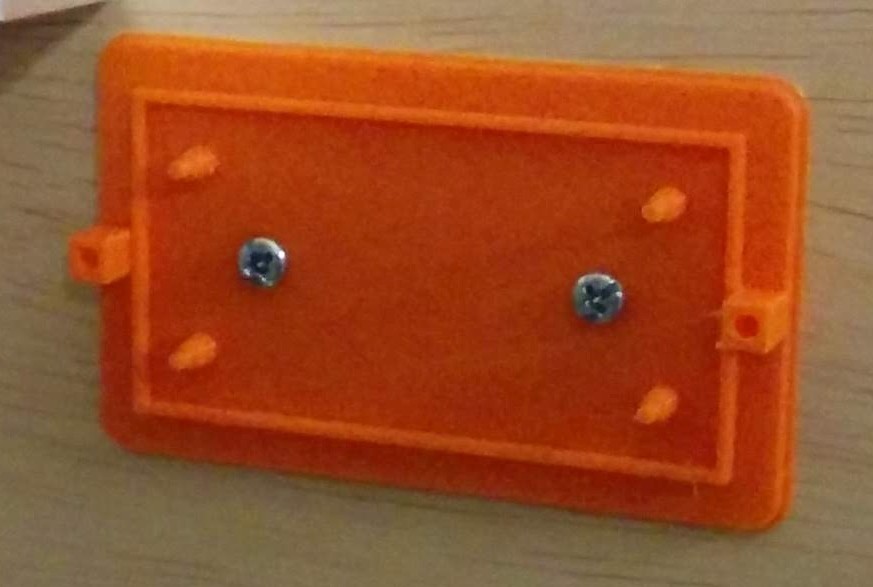

2. The board mounts with a friction fit on the posts.

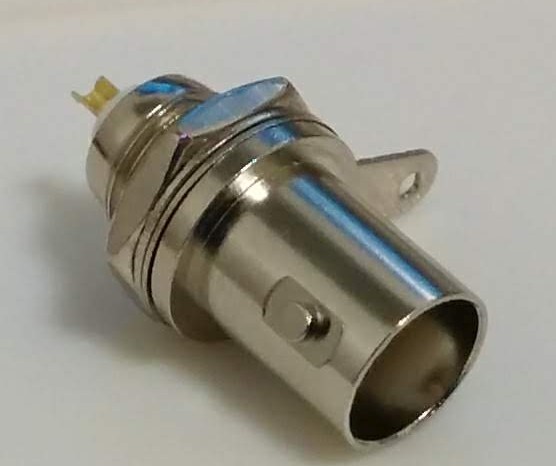

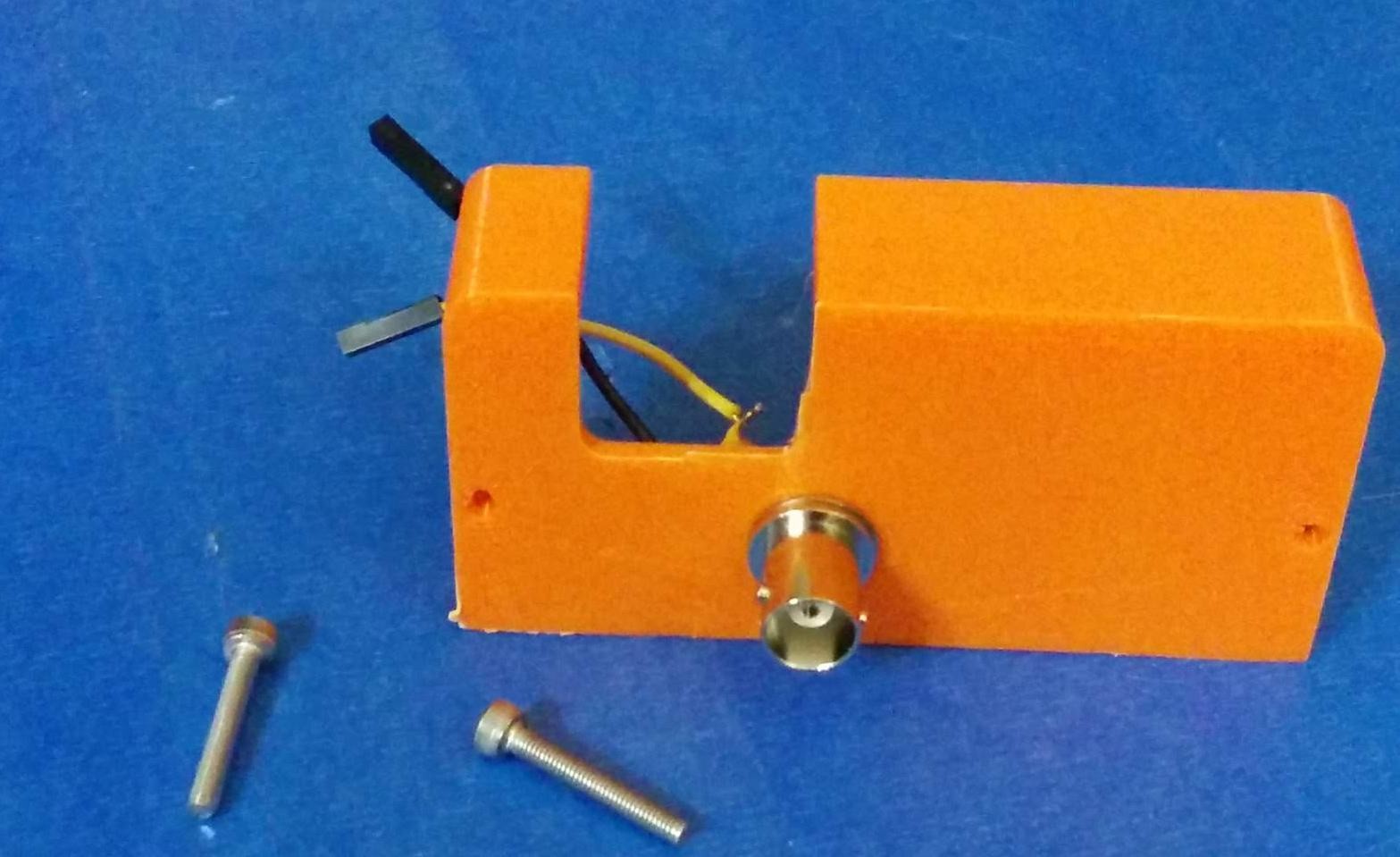

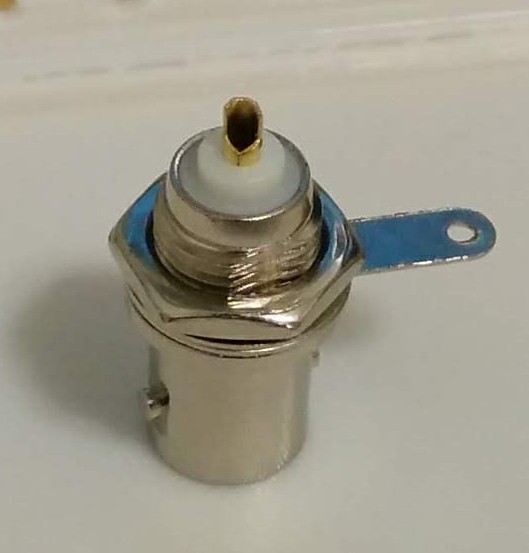

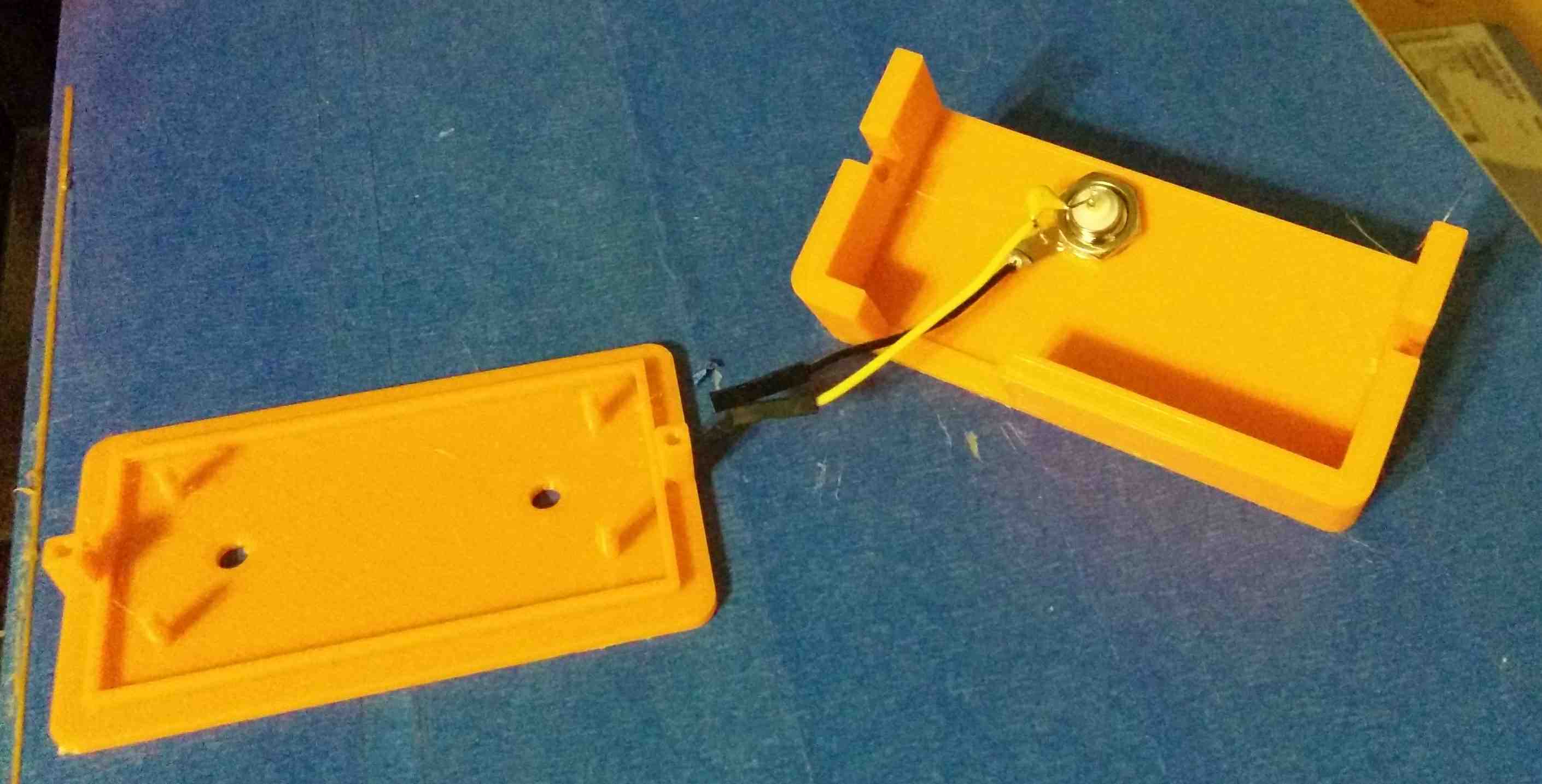

3. You must solder the wiring on the BNC connector center pin at a right angle as shown in the picture, in order to clear the board
4. M3 screws are used to hold the cover on

Download

This work is available for download in the ZIP file format under the terms of the "Attribution-NonCommercial-ShareAlike 4.0 International" license.

STL Preview

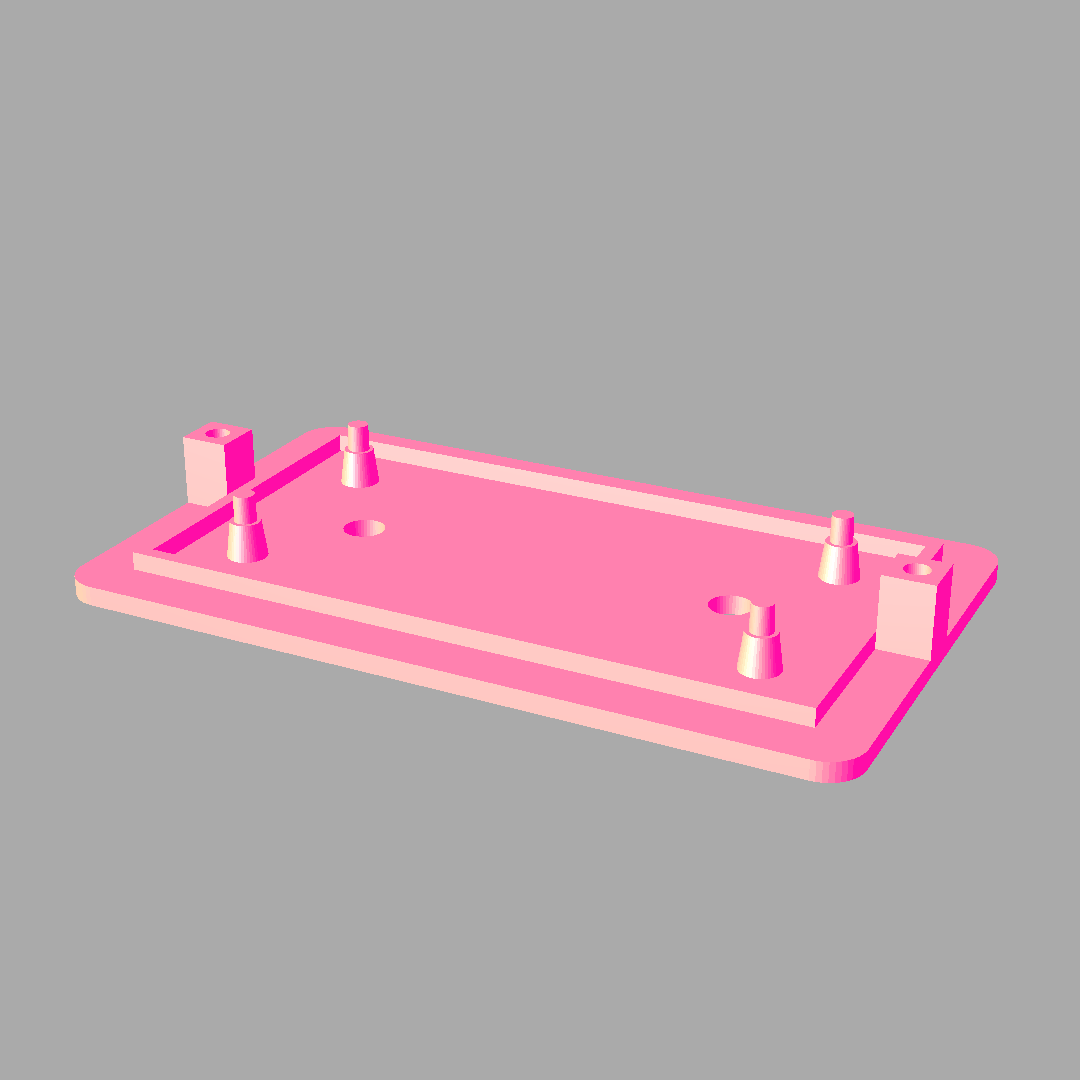

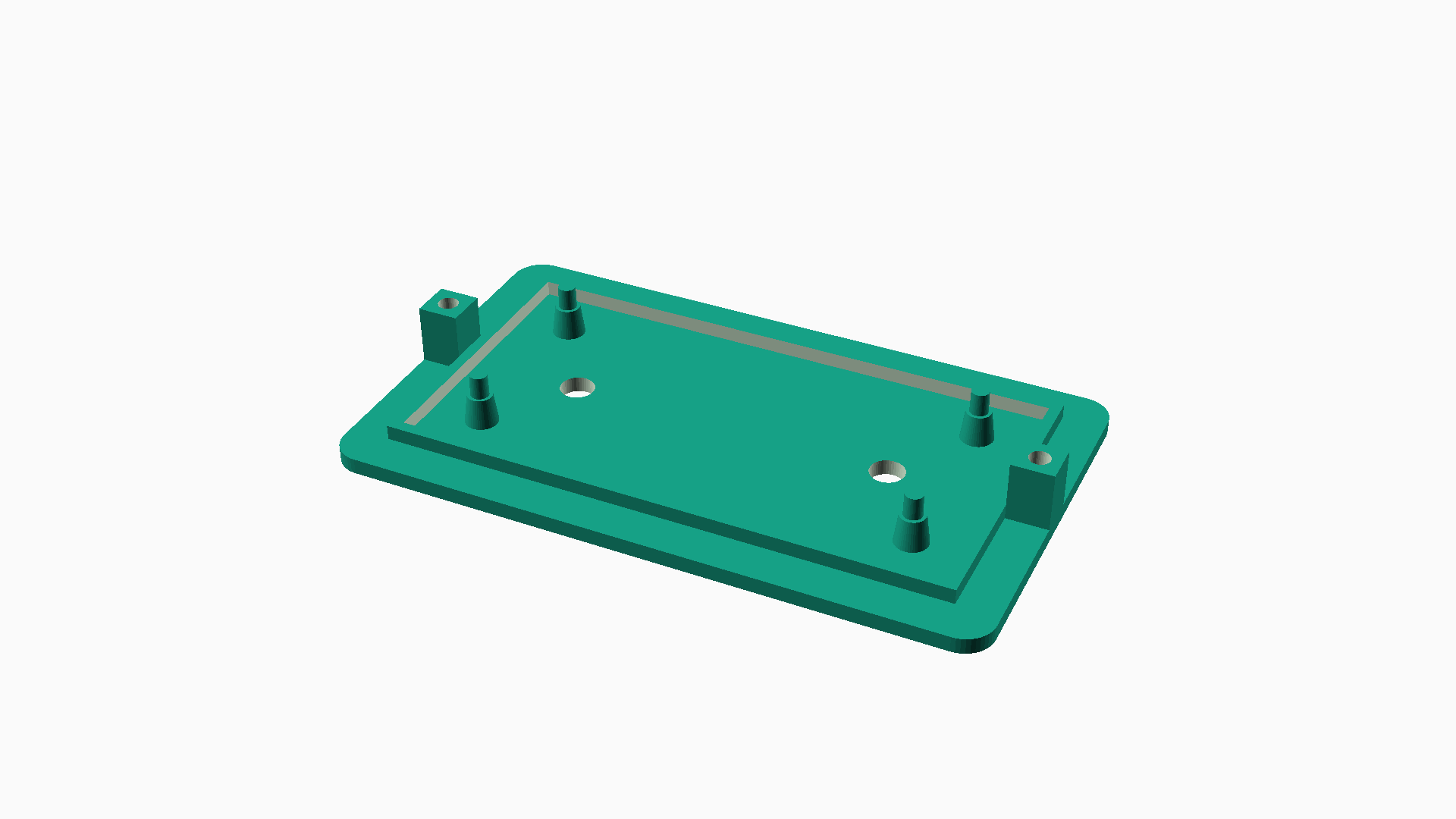

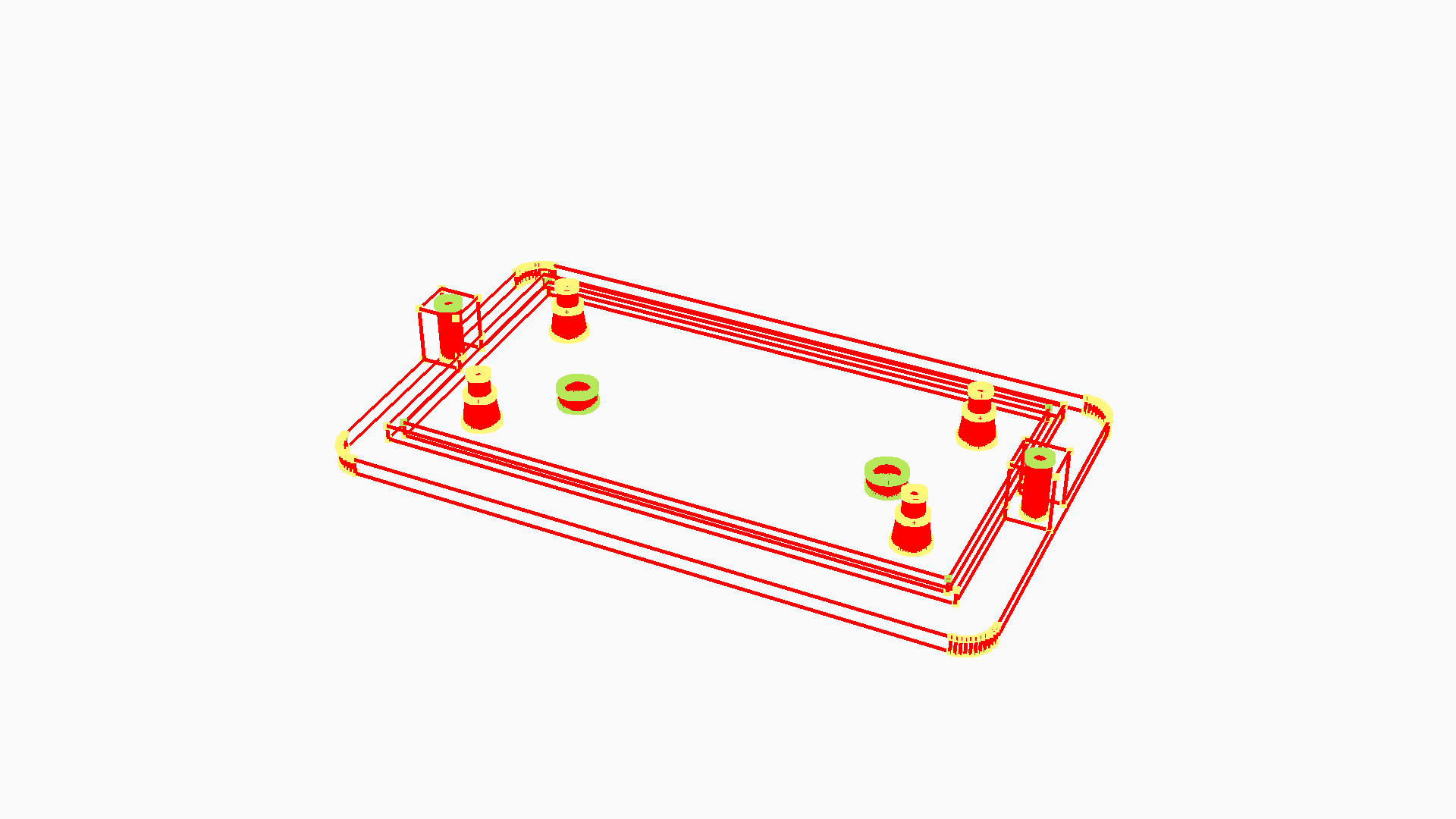

rpi_zero_case_with_bnc_base.stl

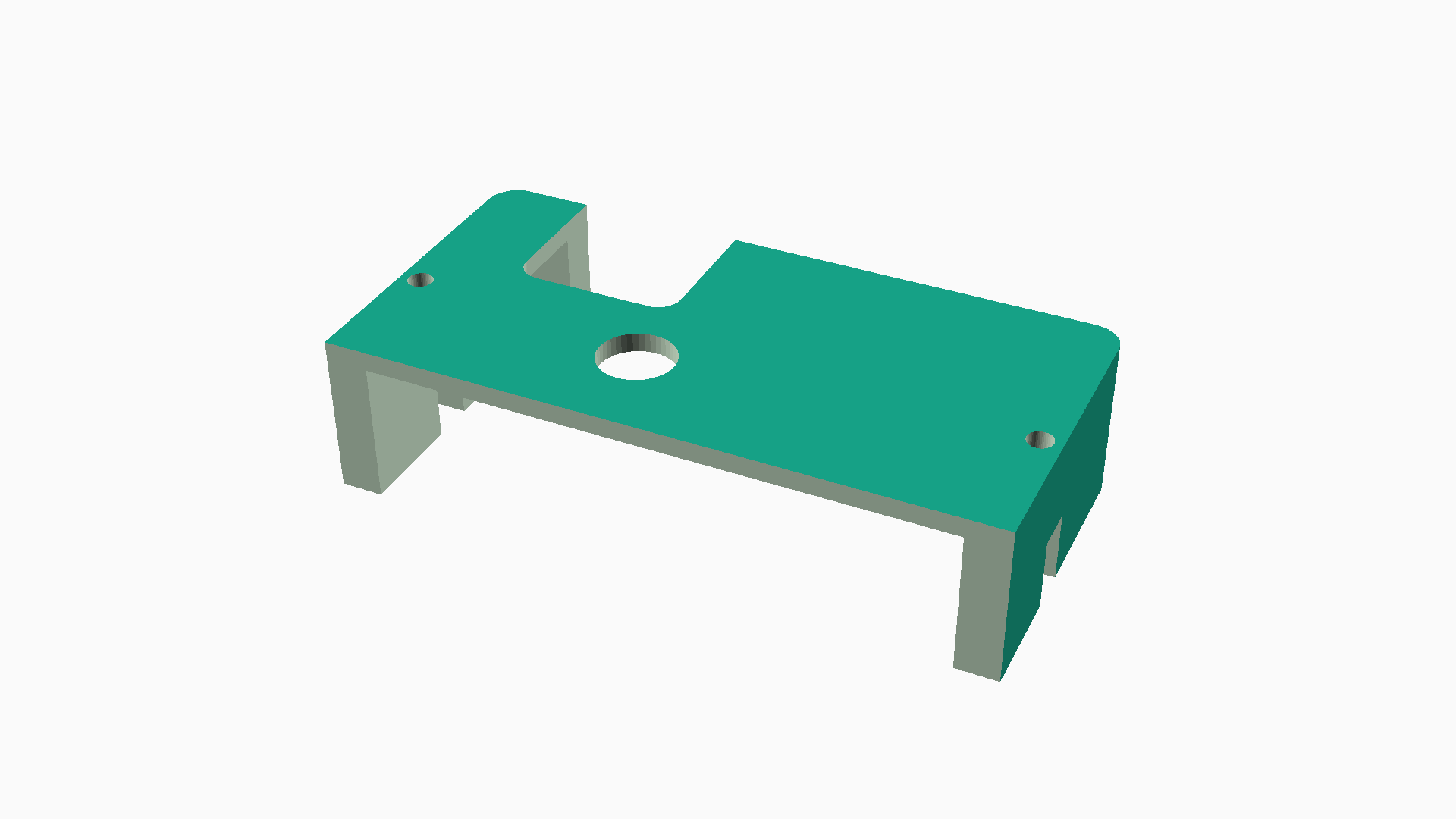

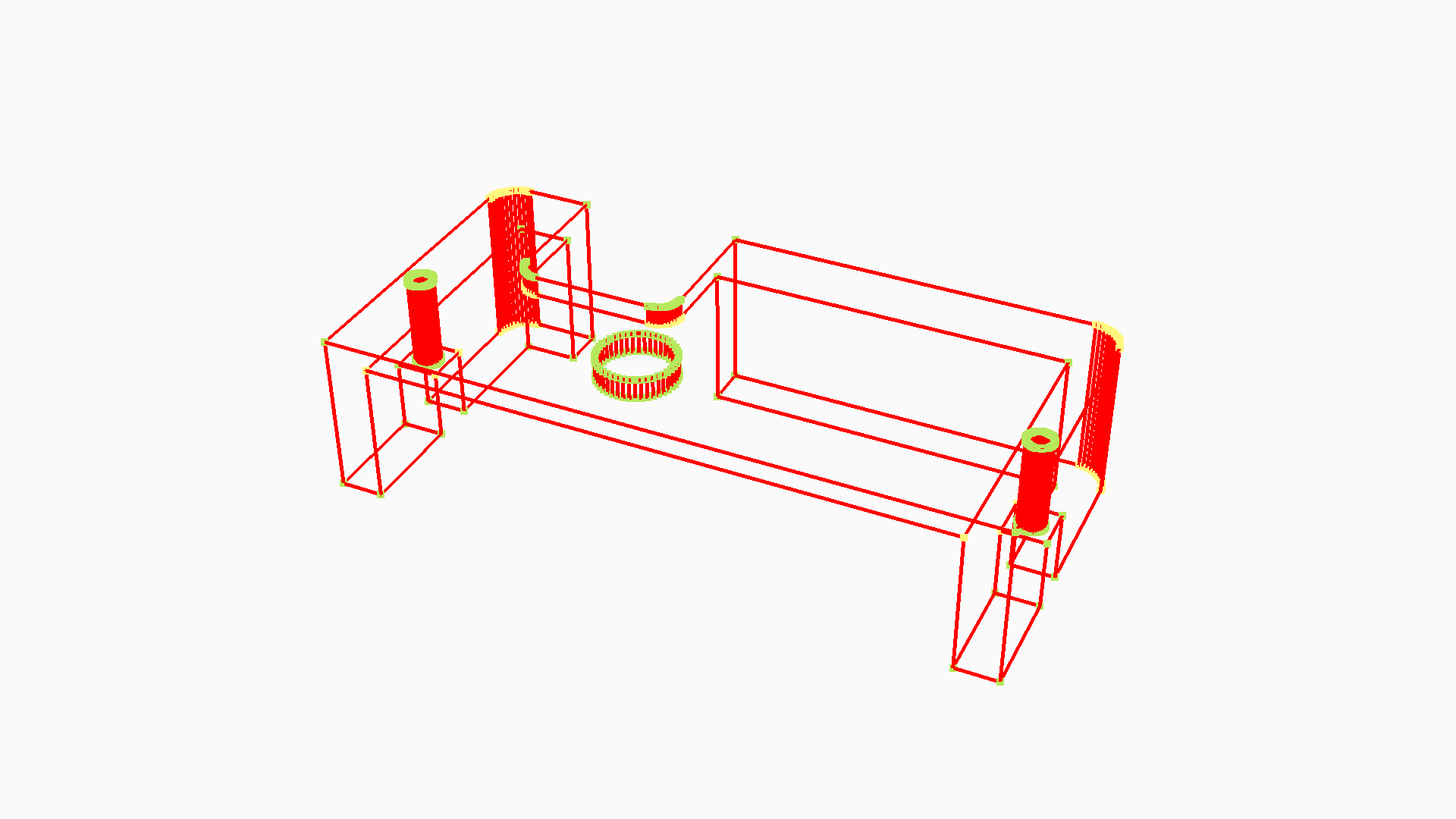

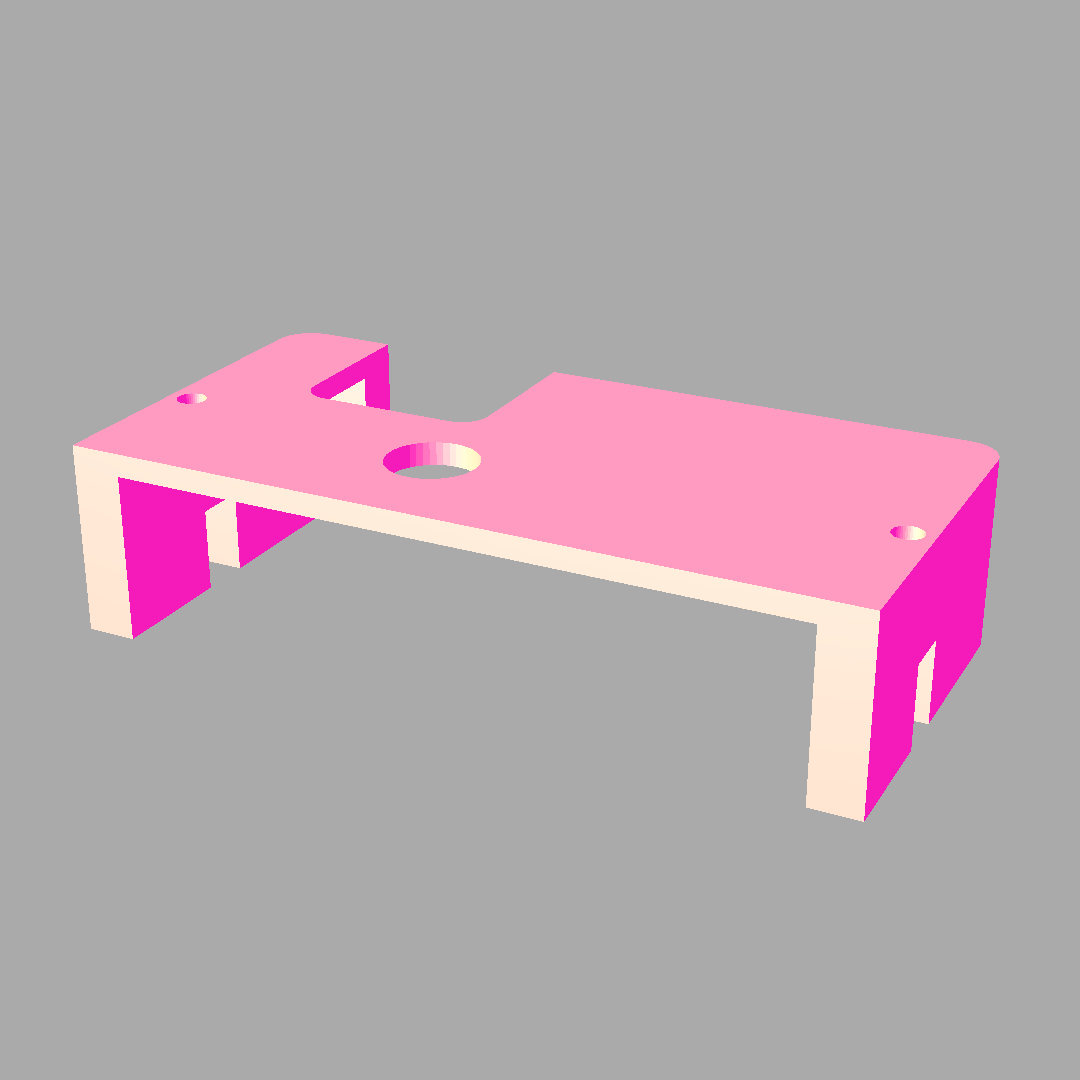

rpi_zero_case_with_bnc_lid.stl
